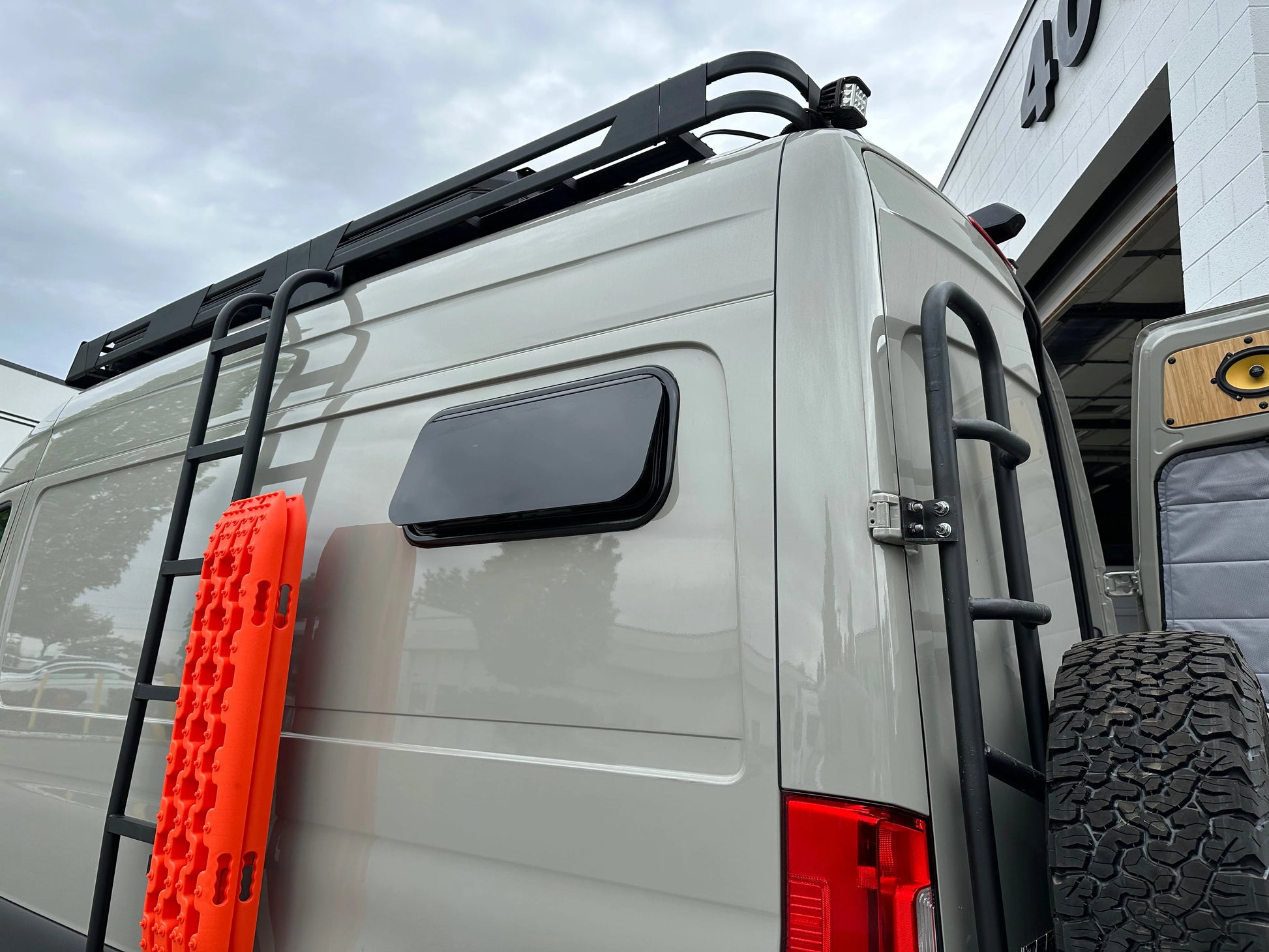

Built for modern van conversions, the Tec Vanlife Flat Window delivers a sleek, universal fit with premium materials and all-weather performance — engineered specifically with an R6000 curvature to match the body contour of Mercedes Sprinter, Ram Promaster and Ford Transit. Clean lines, smooth operation, and true adventure-ready durability.

Premium Features

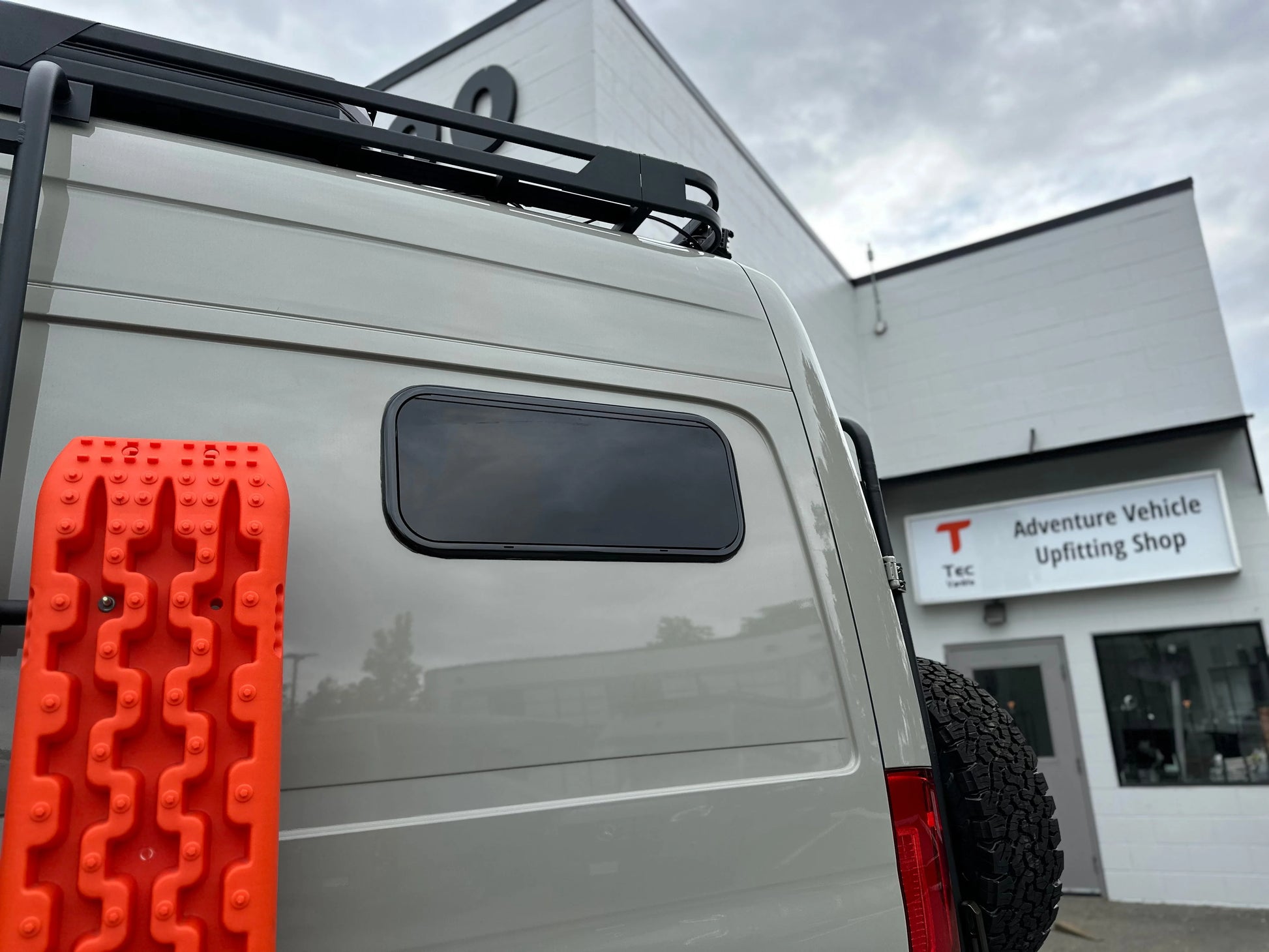

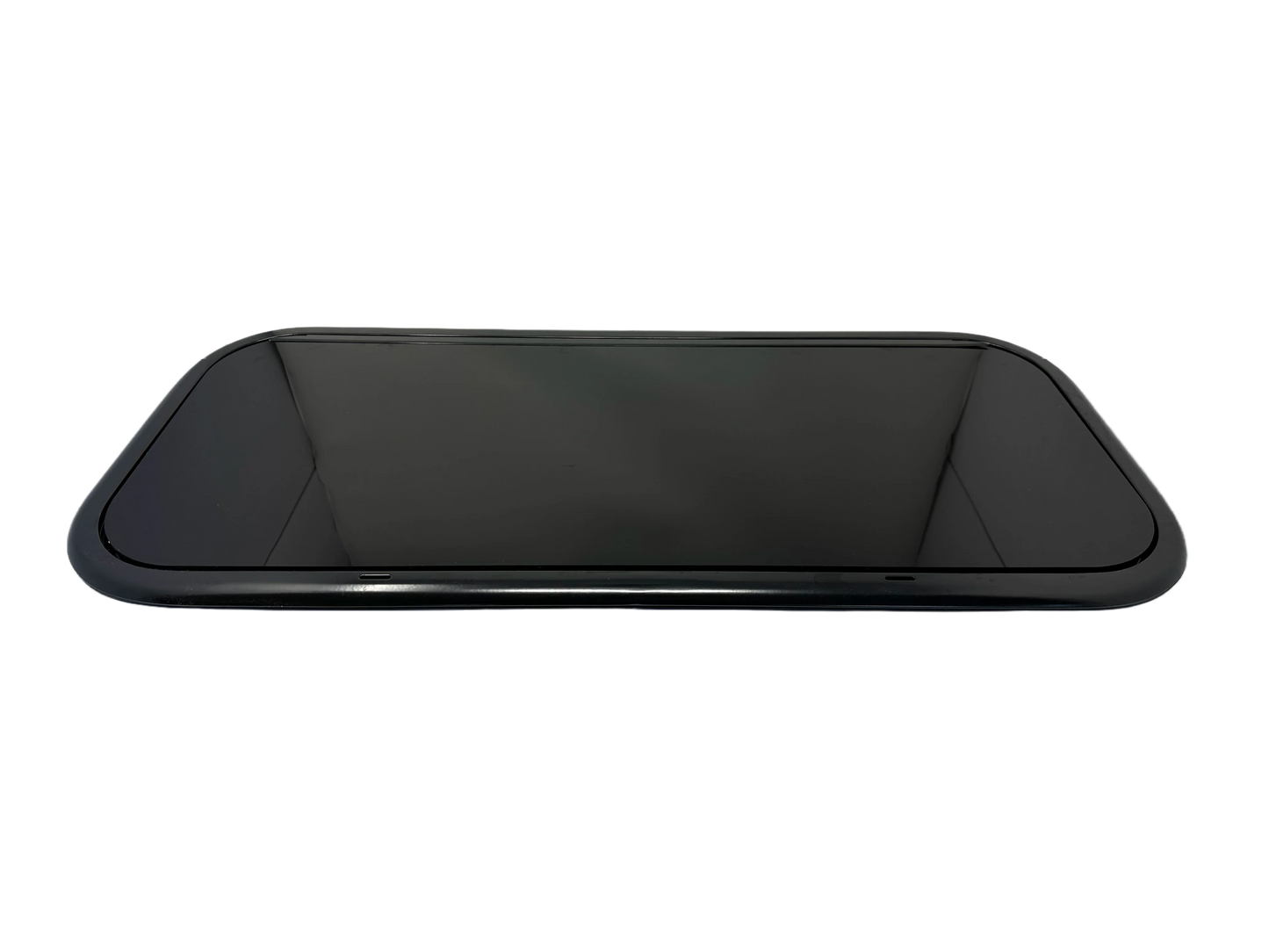

Curved Design for OEM-Level Fit

Unlike standard flat windows, our curved panel follows the natural body radius of Sprinter and Transit vans, creating a factory-like finish with a stronger seal and cleaner aesthetic.

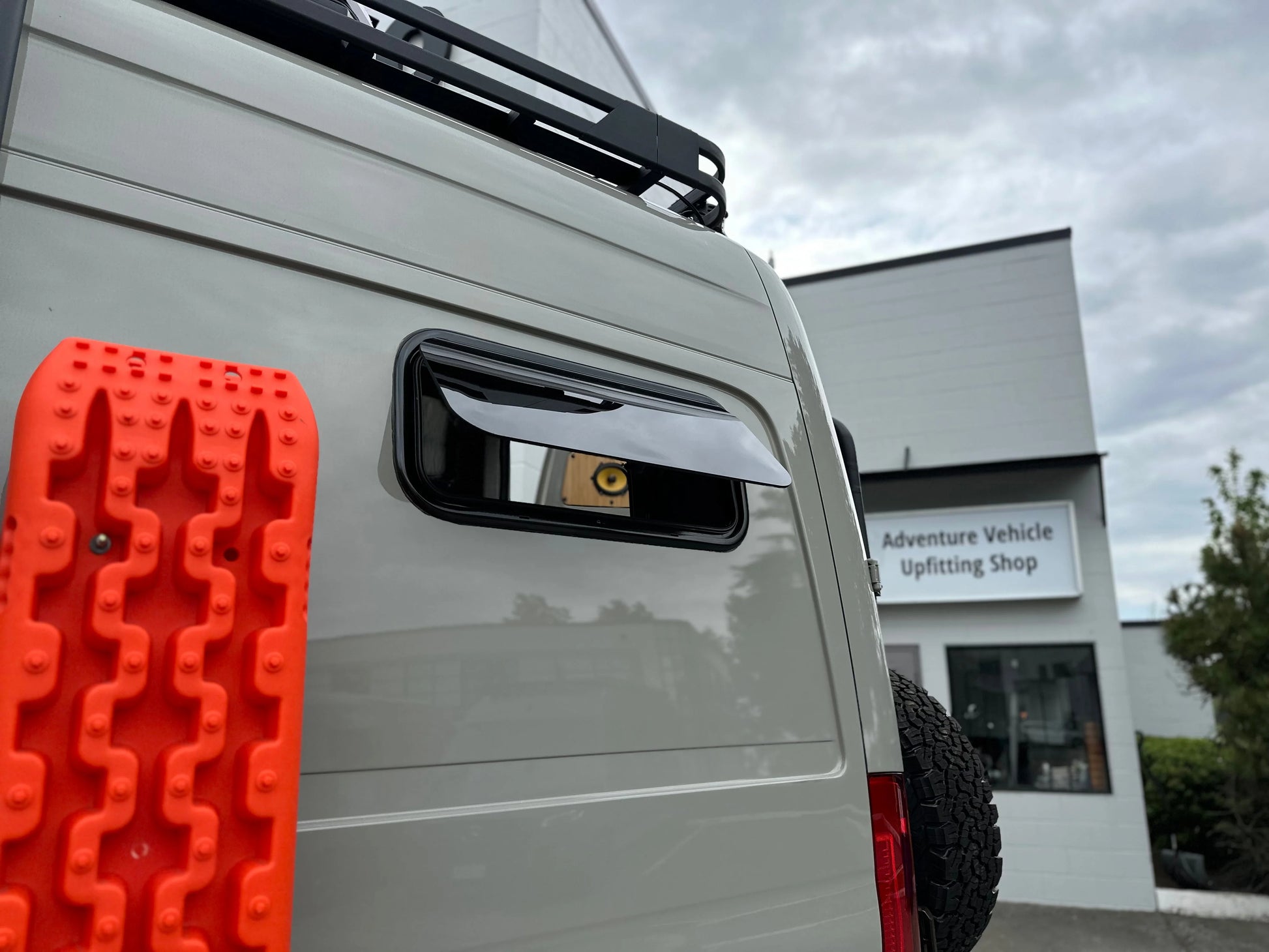

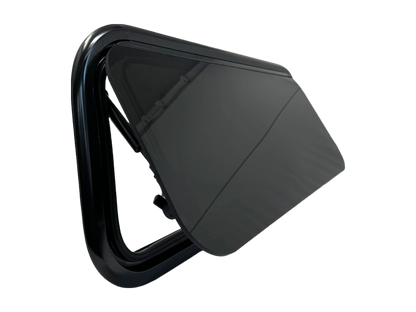

Hydraulic Struts — Stop Anywhere Control

Open the window to any position.
Our automotive-grade hydraulic struts are tested to 20,000+ cycles, giving you long-term reliability and effortless airflow control.

All-Metal Construction

• Powder-coated aluminum alloy frame for maximum strength

• Aluminum handles on the insulated blind + bug screen

• Durable window latch mechanism for smooth, consistent operation

Built to handle real-world travel, temperature changes, and long-term vibration.

Double-Pane Insulated Acrylic

Designed for all-season van life:

• UV-resistant acrylic glazing

• Double-pane insulation

• High-quality rubber perimeter seals

Keep the heat out in the summer, the cold out in the winter, and drafts out year-round.

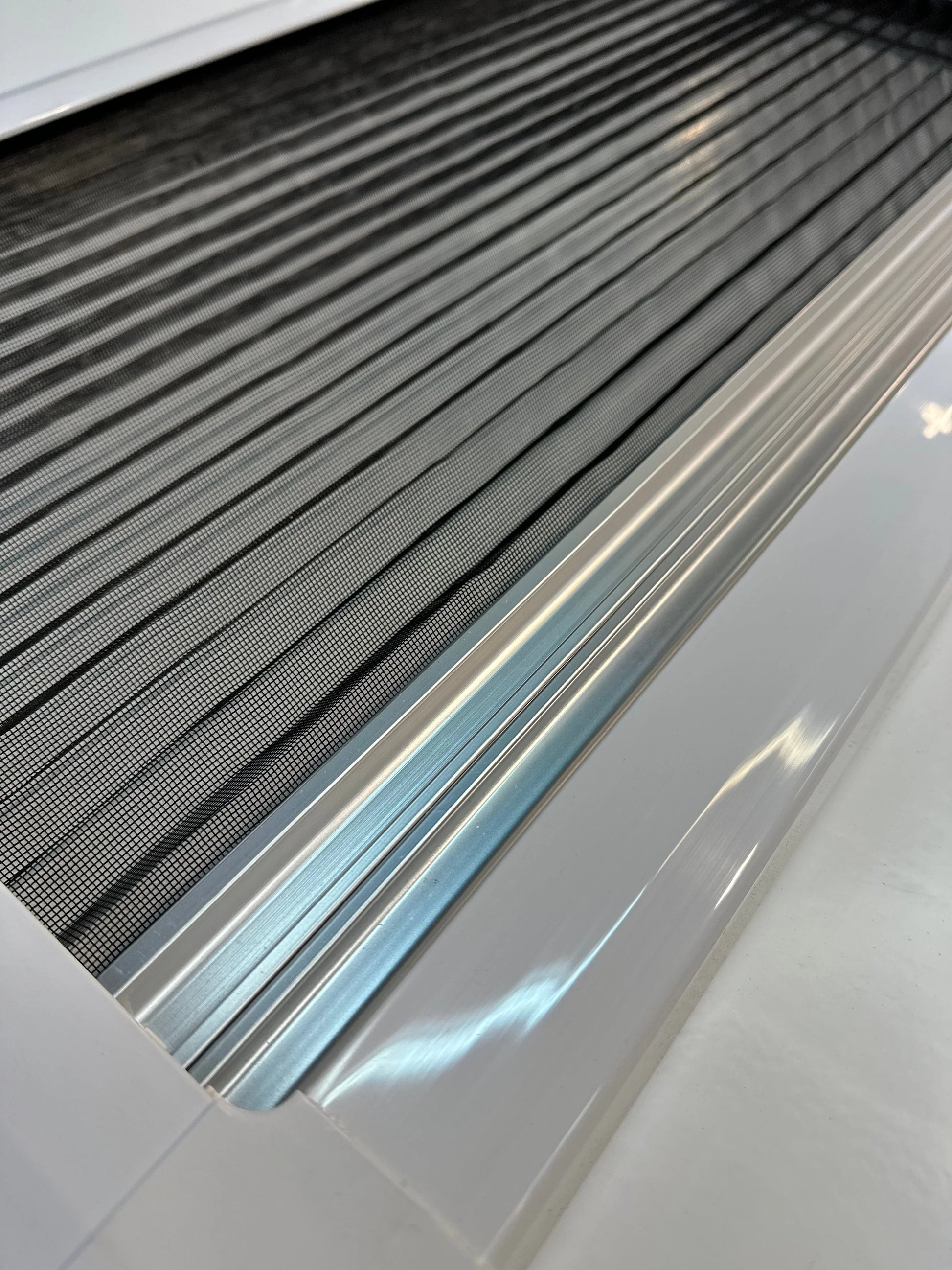

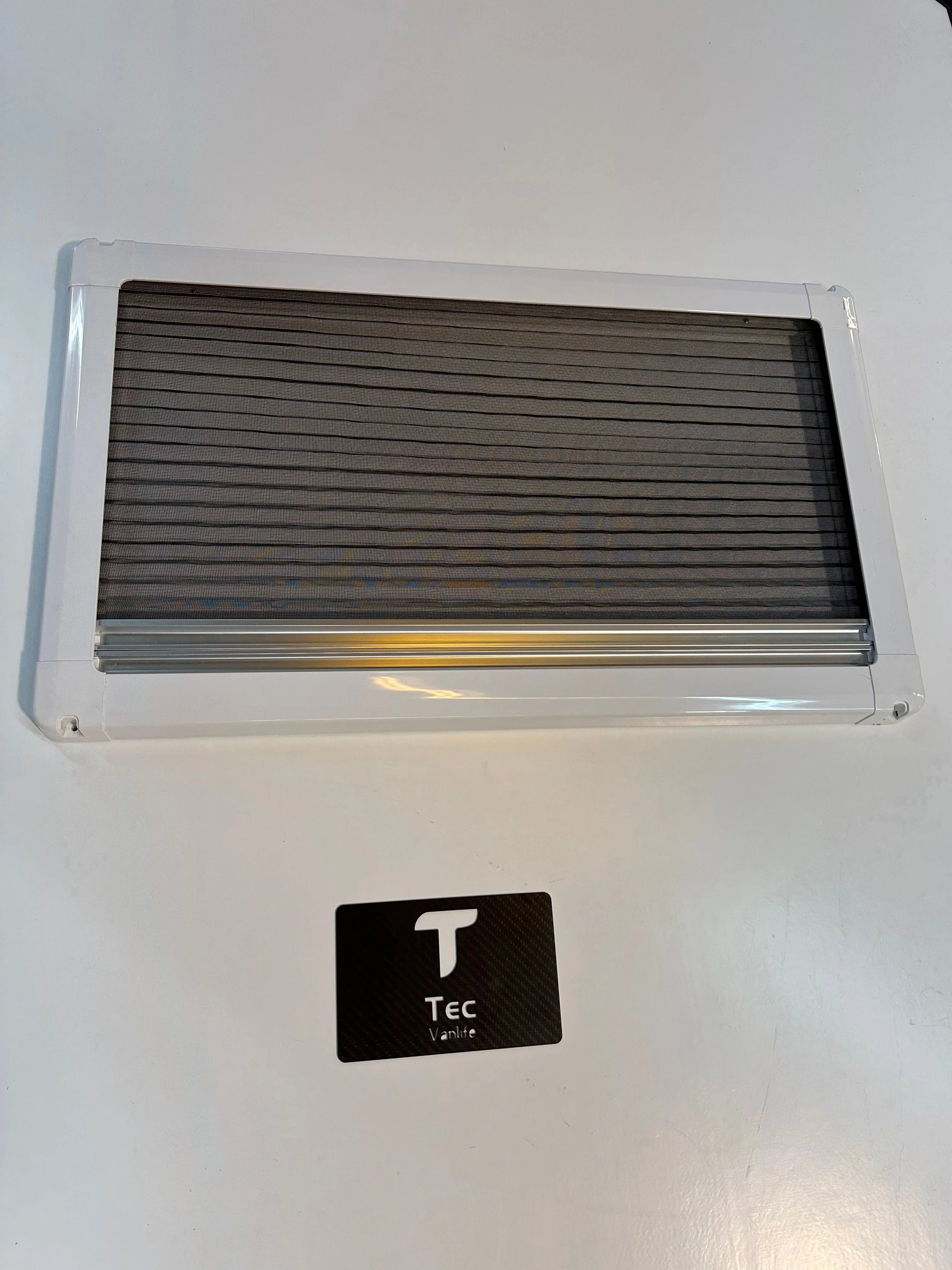

Integrated Blind & Screen System

Fast, seamless switching between:

• Insulated blackout blind

• Fine-mesh bug screen

Sleep comfortably. Ventilate freely. Stay protected from pests.

Backed by Tec Vanlife

Every window comes with a 1-year manufacturer’s warranty for peace of mind and long-term durability you can trust.

Product Specs

Model: Curved Flat Window
Overall Dimension: 700mm × 300mm (27.56" × 11.81")
Body Fit: R6000 curvature (Sprinter, Promaster, Transit compatible)

Installation Overview

1. Prep the Cutout

• Mark your cut line on the van body.

• Remove the rubber gasket from the window frame.

• Cut the opening using an air jig saw (recommended).

2. Apply Adhesive

• Use windshield urethane adhesive along the inner frame edge.

• Mask around the opening with tape for clean adhesive removal.

3. Set the Window

• Press the frame firmly into the cutout.

• Use tape or temporary supports to hold while curing.

4. Clean

• Remove excess urethane with a paper towel or lacquer thinner.

5. Final Check

• After recommended curing time, inspect for full seal and stability.

Install for Wall Thickness 6mm–19mm

• Cut to size and insert wood shims to eliminate gaps.

• Use the inner trim ring to clamp the window securely.

Install for Wall Thickness 20mm–29mm

• Cut the opening, set the window, and secure using the inner trim for a tight clamp and clean interior finish.

Why Choose Tec Vanlife Windows?

Because your van deserves components built with purpose — stronger materials, smarter engineering, and design that blends seamlessly with OEM body lines. The Tec Vanlife Curved Flat Window is the perfect balance of style, durability, and real-world functionality.
