Stop heat and moisture at the metal.
Duck Liner combines reflective foil, closed-cell neoprene and self-adhesive backing to create a continuous layer against the van body—then pairs with 3M Thinsulate for a complete thermal and acoustic system.
Shop each layer—or buy the complete bundle.
Duck Liner and genuine 3M™ Thinsulate™ serve different roles. Choose either material individually or get both together in the complete van-insulation bundle. Each option is available from Tec Vanlife and RoamLabX.
Duck Liner
The self-adhesive, closed-cell first layer with a reflective foil face for sheet-metal coverage, panel damping and moisture-management planning.
3M™ Thinsulate™ SM600L
Genuine lofted automotive insulation for deeper thermal performance and acoustic absorption in walls, ceilings and van-body cavities.
Duck Liner + Thinsulate Bundle
The complete layered system: Duck Liner against the prepared van body and 3M Thinsulate over it for a more complete thermal and acoustic build.
3M Thinsulate is excellent. Duck Liner solves a different problem.
Thinsulate provides lofted thermal and acoustic performance and remains one of our preferred van-insulation materials. But it is not a sealed surface layer, and it does not include a reflective foil facing. Air can move through gaps in an incomplete installation and reach cold sheet metal, where condensation can form. Duck Liner adheres directly to the prepared metal, covers irregular surfaces, and—when its seams are taped—helps create a more continuous first layer beneath Thinsulate.
We needed more than loft insulation alone.
Development began in 2020 as we worked through real camper-van insulation challenges. We started with 3M Thinsulate because it is flexible, hydrophobic and effective—but we wanted a continuous layer against the sheet metal that could address radiant heat, panel vibration and uncontrolled air contact at the metal surface.
Duck Liner became that first layer: self-adhered closed-cell neoprene with a reflective foil face. Thinsulate remains the second layer that adds the deeper thermal loft. The two materials are complementary, not substitutes.
Build the envelope from the metal outward.
Prepared sheet metal
Clean, dry metal provides the foundation. Remove contaminants and address corrosion before any insulation is installed.
Continuous first layer

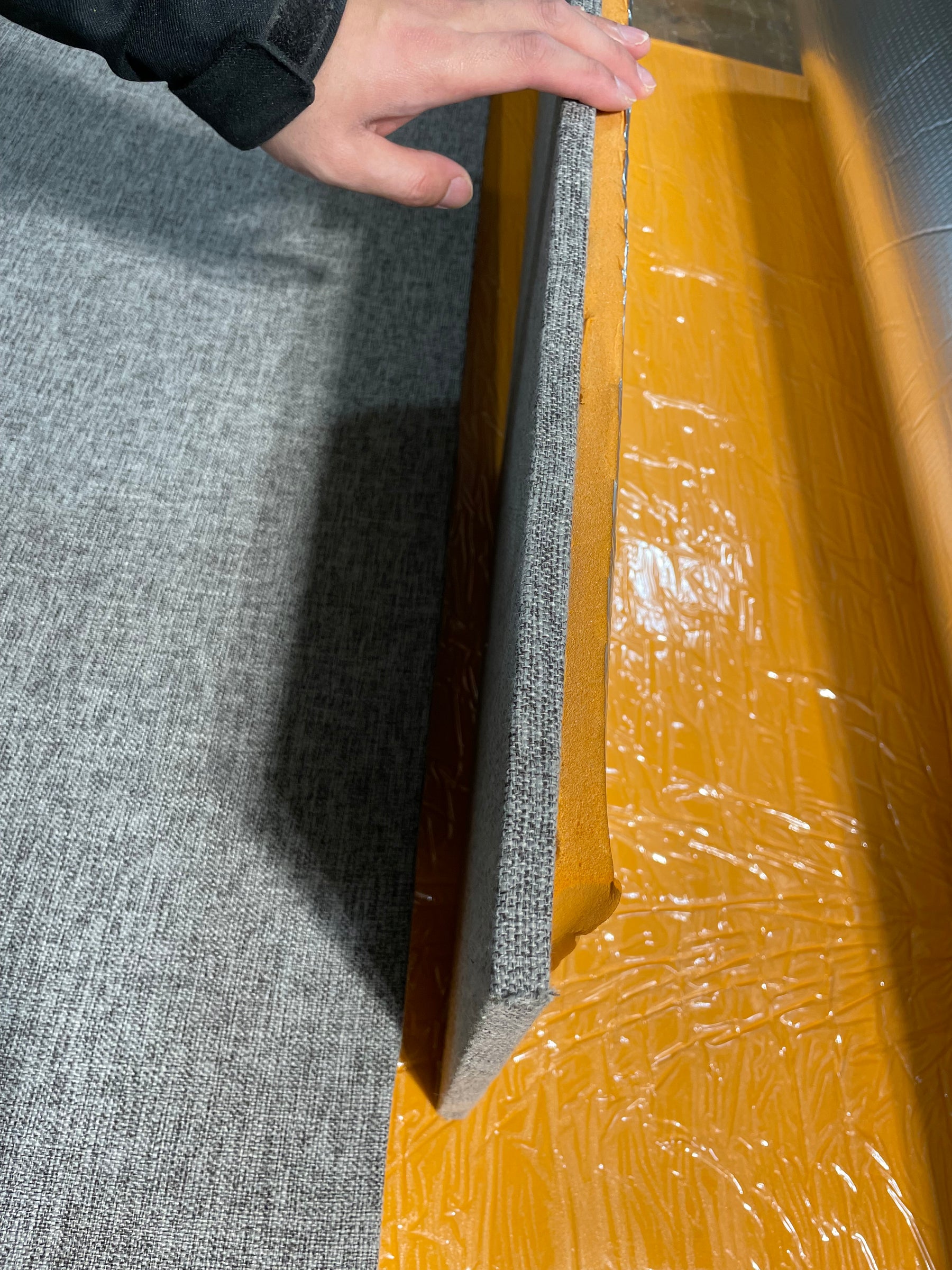

Self-adhesive closed-cell neoprene follows ribs and curved panels. Reflective foil faces inward; taped seams help limit air paths to the cold metal.
Lofted thermal layer
Thinsulate fills cavities and adds the higher-value thermal and acoustic layer needed for a balanced van-insulation assembly.
Reduce the path to cold metal.
Condensation occurs when moisture-laden interior air reaches a surface cold enough for water to condense. No insulation product can remove the need for ventilation and humidity control. Duck Liner helps by creating a closed-cell layer directly against the metal and reducing open air paths when installed continuously with sealed seams.
- Closed-cell material does not rely on open fibers at the metal surface
- Adhesive backing follows irregular van geometry
- Taped seams improve continuity between pieces
- Ventilation and active moisture control remain essential
A reflective face that Thinsulate does not have.

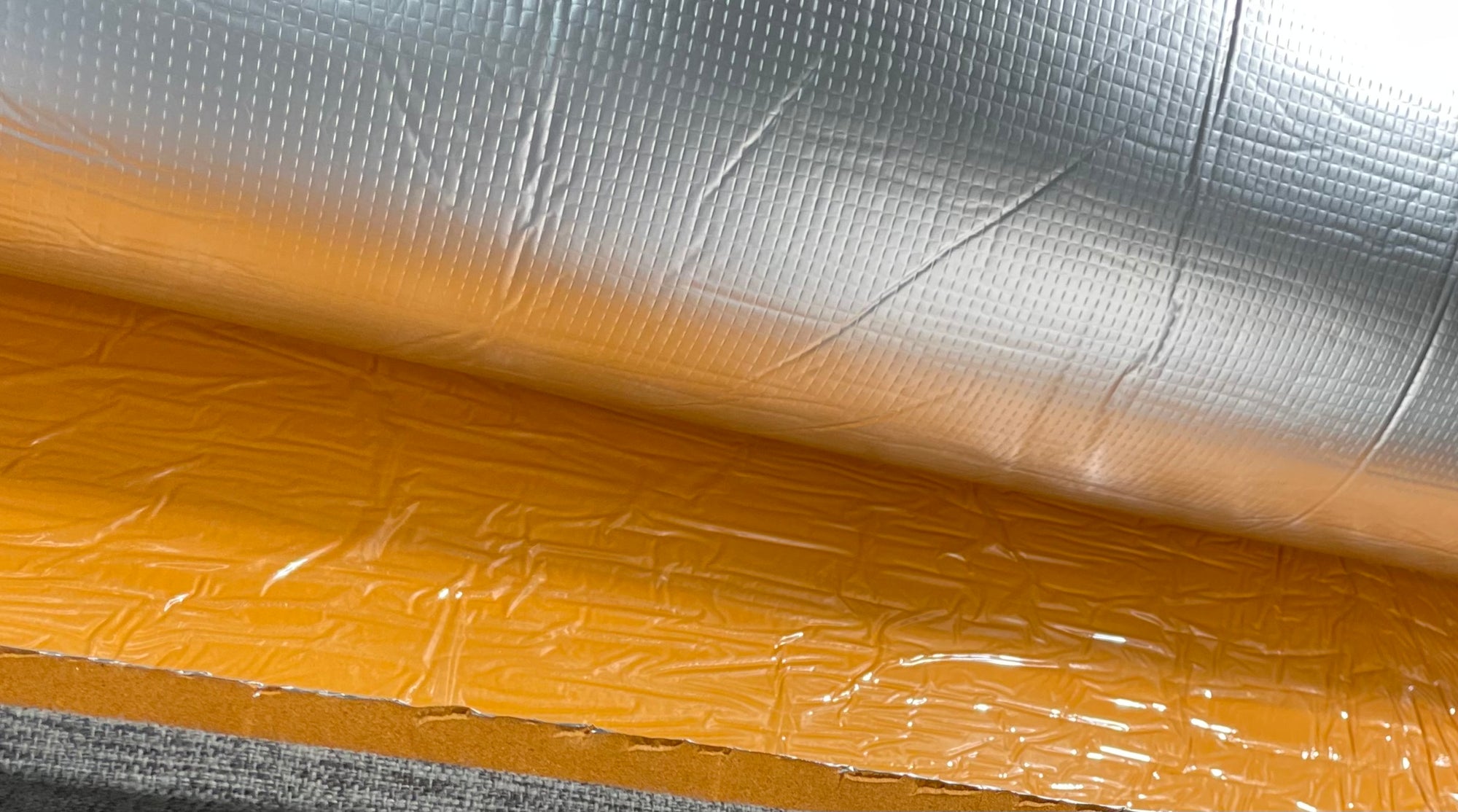

The aluminum-foil facing adds a reflective surface to the insulation assembly, helping manage radiant heat transfer. Its real-world contribution depends on the complete build—including adjacent layers, available air space, seam treatment and installation quality—so we present it as one part of the system rather than a stand-alone miracle layer.
In summer, the assembly helps slow exterior heat from moving inward. In winter, it supports a more stable interior envelope while Thinsulate supplies additional thermal resistance.
One first layer. Six practical jobs.
Condensation control
Helps reduce direct air contact with cold metal when installed continuously and paired with proper ventilation.
Reflective foil surface
Adds a radiant-facing layer that conventional fibrous insulation does not provide.
Panel vibration damping
Direct adhesion and the neoprene core help calm resonance from broad van-body panels.
Closed-cell construction
The neoprene core resists water absorption and provides a durable barrier layer against the metal shell.
Self-adhesive backing
Peel-and-stick application follows ribs, wheel arches and complex surfaces without separate adhesive.
Built to pair with Thinsulate
Duck Liner manages the surface layer while 3M Thinsulate adds deeper thermal loft and acoustic absorption.
Use each material for what it does best.
| Function | Duck Liner | 3M Thinsulate | Combined system |
|---|---|---|---|
| Primary role | Continuous adhered first layer | Lofted thermal/acoustic cavity insulation | Surface control plus deeper insulation |
| Contact with metal | Designed to adhere directly | Typically fitted or bonded over the first layer | Duck Liner separates most cavity air from metal |
| Radiant facing | Reflective aluminum foil | No foil facing | Reflective face plus fibrous loft |
| Moisture approach | Closed-cell continuous layer | Hydrophobic, breathable fibers | Layered moisture-management strategy |
| Sound management | Helps damp panel vibration | Absorbs airborne and cavity noise | Broader acoustic treatment |
Chrome’s real van build

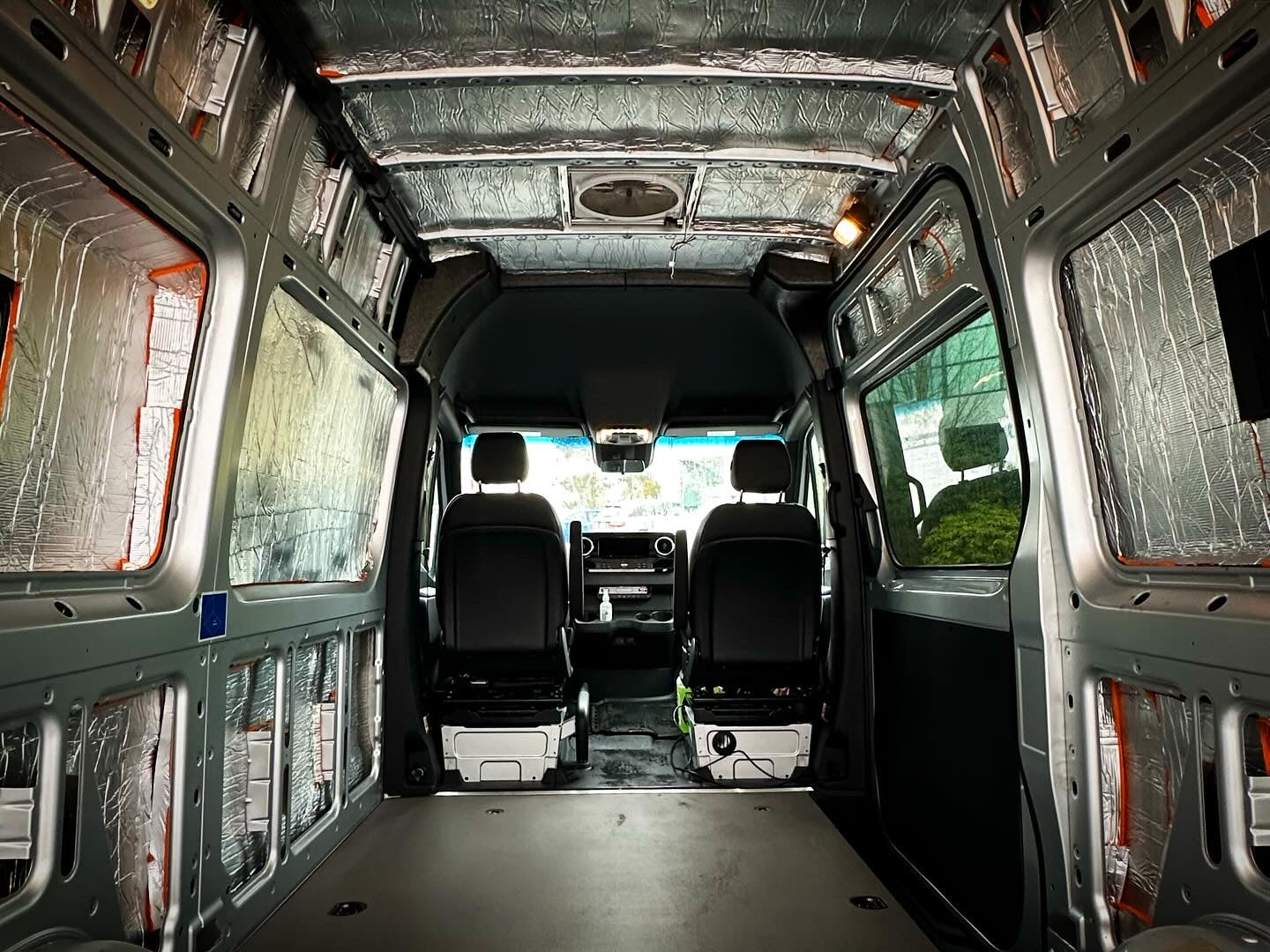

Vancity Vanlife / The Chrome Project installs Tec Vanlife Duck Liner for moisture, heat and sound management in a high-roof Sprinter build.
See the material go onto an actual van.
This is not a studio demonstration. Chrome works through the practical realities of fitting Duck Liner to van walls and structural shapes during a complete build.
A system developed from a real insulation gap.
2020 · Development begins
We began looking for a first layer that could adhere to sheet metal, address radiant heat and panel vibration, and complement the 3M insulation we already trusted.
2021 · The complete-envelope problem
Van builds reinforced the same lesson: fibrous insulation performs well, but gaps and exposed metal can still allow interior air to reach cold surfaces. A continuous first layer became the priority.
Duck Liner · The complementary layer
Reflective foil, closed-cell neoprene and self-adhesive backing were combined into a material shaped around van construction—not residential walls.
Today · Duck Liner + Thinsulate
The recommended assembly uses Duck Liner at the metal and Thinsulate over it, alongside sealed seams, ventilation and appropriate moisture management.
Before you start cutting.
Does Duck Liner replace 3M Thinsulate?
No. Duck Liner is the adhered first layer against the metal; 3M Thinsulate adds the higher-value lofted thermal and acoustic layer. We recommend using them together for a more complete assembly.
Will Duck Liner completely eliminate condensation?
No single material can guarantee that. Duck Liner helps reduce air contact with cold metal when applied continuously with sealed seams, but ventilation, heating practices, indoor humidity and thermal bridges still affect condensation.
What are the roll dimensions?

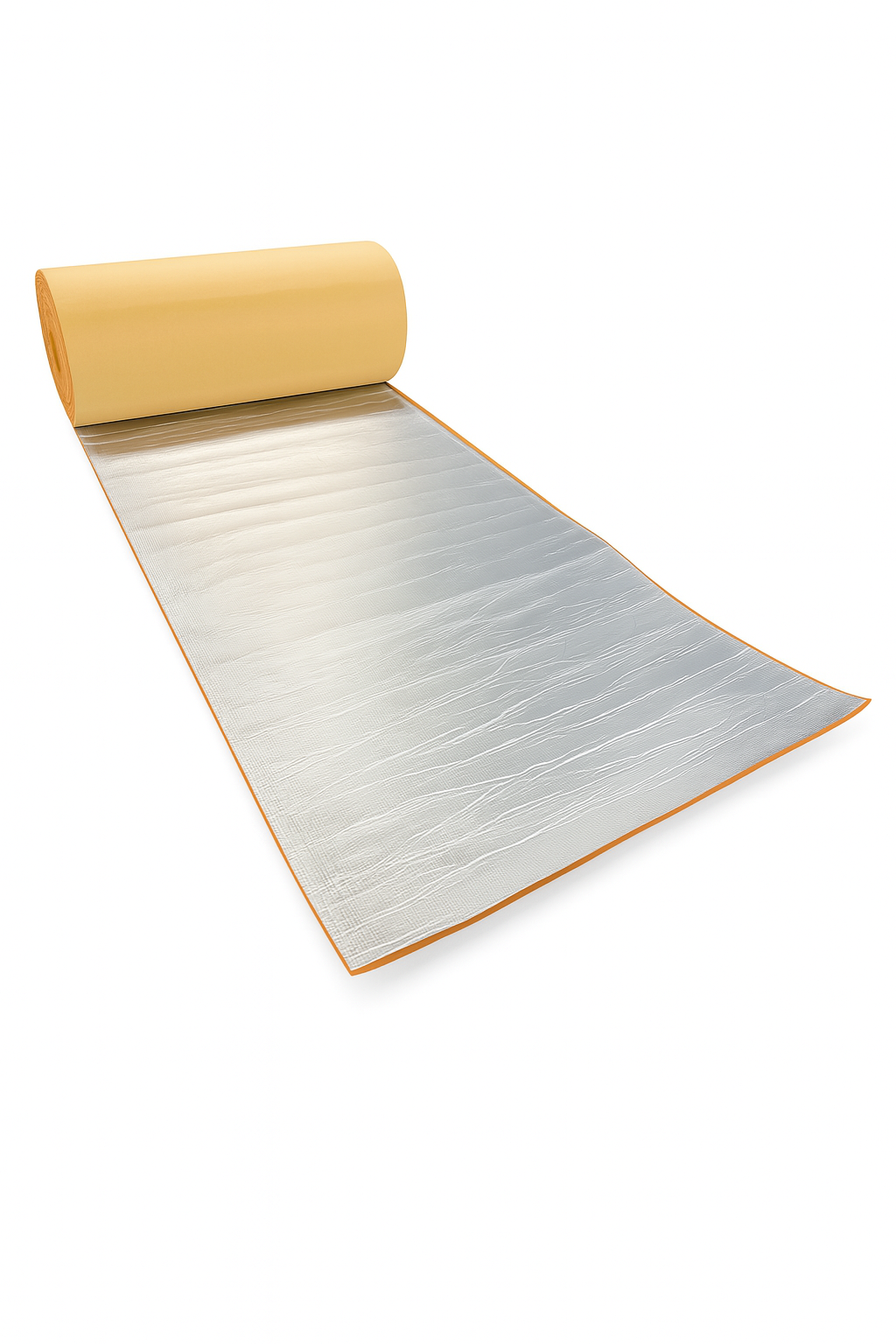

Each published roll measures 32.5 feet long by 3.25 feet wide and uses 3/8-inch closed-cell neoprene with adhesive backing.
What temperature should it be installed at?
The product guidance recommends an ambient and van-metal temperature between 50 and 80°F. The surface should be clean, dry and free from oils, old adhesive and contamination.
How should the seams be finished?
Fit the pieces closely, apply even pressure with a roller, and tape the seams with suitable construction vapor-barrier tape to improve continuity. Follow the current product instructions for your build.
Does reflective foil work without an air gap?
Reflective performance depends on the complete assembly and adjacent air space. The foil still provides a durable facing and one component of the thermal system, but it should not be treated as a high-R-value replacement for Thinsulate.
Where can I buy Duck Liner in the United States?
Duck Liner is available through TecVanlife.com and RoamLabX.com. Review the live product listing for current price, availability and shipping information.
Start with Duck Liner. Finish with Thinsulate.
A complementary insulation system for heat, moisture and road noise in Sprinter, Transit, ProMaster and other camper van conversions.
Confirm current product specifications, availability, installation guidance and shipping details on the product page before ordering.
